PTH4

Pressure/Temperature/Humidity Data Logger

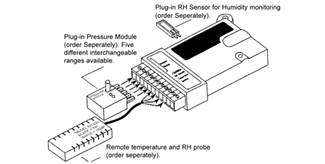

The DeltaTRAK PTH4 is a electronic data logger designed for easy monitoring and troubleshooting of pneumatic control and low-pressure duct systems. The unit is designed to work with optional plug-in Pressure Modules. The unit can also monitor Relative Humidity as well as remote temperature and humidity.

Applications: Performance tracking of pneumatic-controlled vales, dampers, thermostats,humidistats, switches, and compressors; checking energy management and control strategies.

Accesories: Pressure Modules, RH-002 Sensor, EH-020 Temperature/RH Probe, any ET Series Temperature Probes (thermistors).

Ordering Guide: Order one or more Pressure Module. Five different interchangeable ranges available (listed below)

Specifications: No. of channels: One for ambient temperature. One for optional Pressure Module. One for optional RH Sensor. One for optional remote thermistor (ET Series). One for optional remote Temp/Humidity probe.
