DeltaTRAK RepeaterFlashLink Wireless
  • 仪器名称：Repeater
  • 仪器品牌：DeltaTRAK
  • 仪器型号：FlashLink Wireless
  • 送货时间：48小时内
  • 标准价格：不详
  • 本站售价：洽询
  • 关键参数：FlashLink® Wireless is a wide area, real-time monitoring, recording and alarm system with user-defined set up, continuous monitoring and complete management reporting for temperature and humidity.
加入购物车 加入收藏夹 无软件下载 无资料下载 厂商介绍

性能参数介绍

软件下载：        无

资料下载：         无

产品介绍

FlashLink Wireless



Repeater

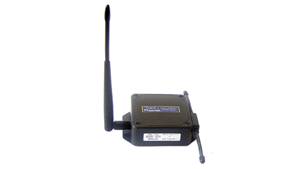

Model 20121 FlashLink Wireless Repeater, FlashLink Wireless System





FlashLink® Wireless is a wide area, real-time monitoring, recording and alarm system with user-defined set up, continuous monitoring and complete management reporting for temperature and humidity.

Repeats signals from Sensors and other Repeaters for superior scalability

Receives readings from all FlashLink Wireless Sensors from up to 600 feet away

Sends signals either to another Repeater or to a Reciever

Up to 1,300 feet of networking distance from Repeater-to-Repeater or Repeater-to-Receiver

900 MHz Package Model 21032



Model 20121 FlashLink Wireless Repeater

DeltaTRAK manufactures products under an ISO 9000 registered quality management system

Channel Capacity

Hops through 25 channels. Features 7 different hop sequences

Enclosure (Casing)

High impact acrylonitrile butadiene styrene (ABS)

Frequency Control

Direct FM

Frequency Range

418 MHz(Rx) and 900MHz(Tx) unlicensed ISM Band

Accessories

6.5 in (165mm) reverse polarity SMI antenna, 9V DC power supply

Network Topology

Mesh networking

Power Supply

6W 9V DC 300mA 120V power supply with (2.5mm x 50.mm) output plug

Transmission Range

Indoor: 1300 ft (from repeater) maximum (depending on environment)

Receiving Range (from sensor)

Indoor: 600ft. (183 m) (max) (depending on environment)

Size

4.25in (L) 3.25in (W) 1.375in (H) (108 x 83 x 35mm)

Transceiver Type

Frequency hopping spread spectrum transceiver



Revision 06H1
