DeltaTRAK Ambient Temperature SensorFlashLink® Wireless
  • 仪器名称：Ambient Temperature Sensor
  • 仪器品牌：DeltaTRAK
  • 仪器型号：FlashLink® Wireless
  • 送货时间：48小时内
  • 标准价格：不详
  • 本站售价：洽询
  • 关键参数：FlashLink® Wireless is a wide area, real-time monitoring, recording and alarm system with user-defined set up, continuous monitoring and complete management reporting for temperature and humidity.
加入购物车 加入收藏夹 无软件下载 无资料下载 厂商介绍

性能参数介绍

软件下载：        无

资料下载：         无

产品介绍

FlashLink® Wireless



Ambient Temperature Sensor

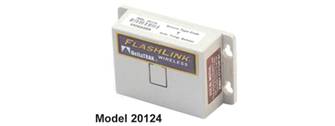

Model 20124 Ambient Temperature Sensor, FlashLink Wireless System







FlashLink® Wireless is a wide area, real-time monitoring, recording and alarm system with user-defined set up, continuous monitoring and complete management reporting for temperature and humidity.

Highly reliable temperature measurements and data transmission

Sends signal up to 600 feet distance to a 418MHz Receiver, or a 900MHz Repeater with 900MHz Receiver

Low power consumption for years of non-stop operation before battery change

Data is recorded and managed with FlashLink Wireless Manager Software



Model 20124 Ambient Temperature Sensor

DeltaTRAK manufactures products under an ISO 9000 registered quality management system

Temperature Measurement Range

-22°F to 185°F (-30°C to 85°C)

Temperature Accuracy

±0.9°F (±0.5°C) from 32°F to 185°F (0°C to 85°C)
±1.8°F (±1°C) < 32°F (0°C)

Temperature Resolution

0.1°F/°C

Battery Type / Life

CR2032 3-Volt Lithium/ (2 to 3 years in live mode)

Data Throughput

9600 or 19200bps

Compliancy

FCC Part 15

Enclosure (Casing)

High impact acrylonitrile butadiene styrene (ABS)

Frequency Control

Direct FM

Frequency Range

418 MHz or 902 - 928MHz , unlicensed ISM Band

Unique Identifier

22-character unique ID

Network Topology

Point-to-point transparent networking

Operating Temperature

-22°F to 185°F (-30°C to 85°C)

Tx (Transmission) Range

600ft (183m) Line-of-Sight

Size

3.063in (L) 1.938in (W) 0.875in (H) (79 x 50 x 22 mm)

Transmitter Type

Internal loop antenna; 15 milliseconds transmission time at random intervals

Transmission Intervals

10 to 17 seconds random

Transport Protocol

Various monitoring and addressing modes



Revision 04K1
